Two stage
LT Series
6 – 26
Ratio i
52.5 kW
Max. input · 1500 rpm
CI BodyFabricated
Compact two-stage drives for travel and lower-ratio duties. Horizontal and vertical mounting.
LT · HC · HD Series / Since 1990
Crane Duty Helical Gearboxes
Case-hardened, profile-ground helical gearboxes for EOT crane hoists, travel drives and winches. Designed, machined and tested under one roof in Ahmedabad, in cast iron or fabricated steel housings.

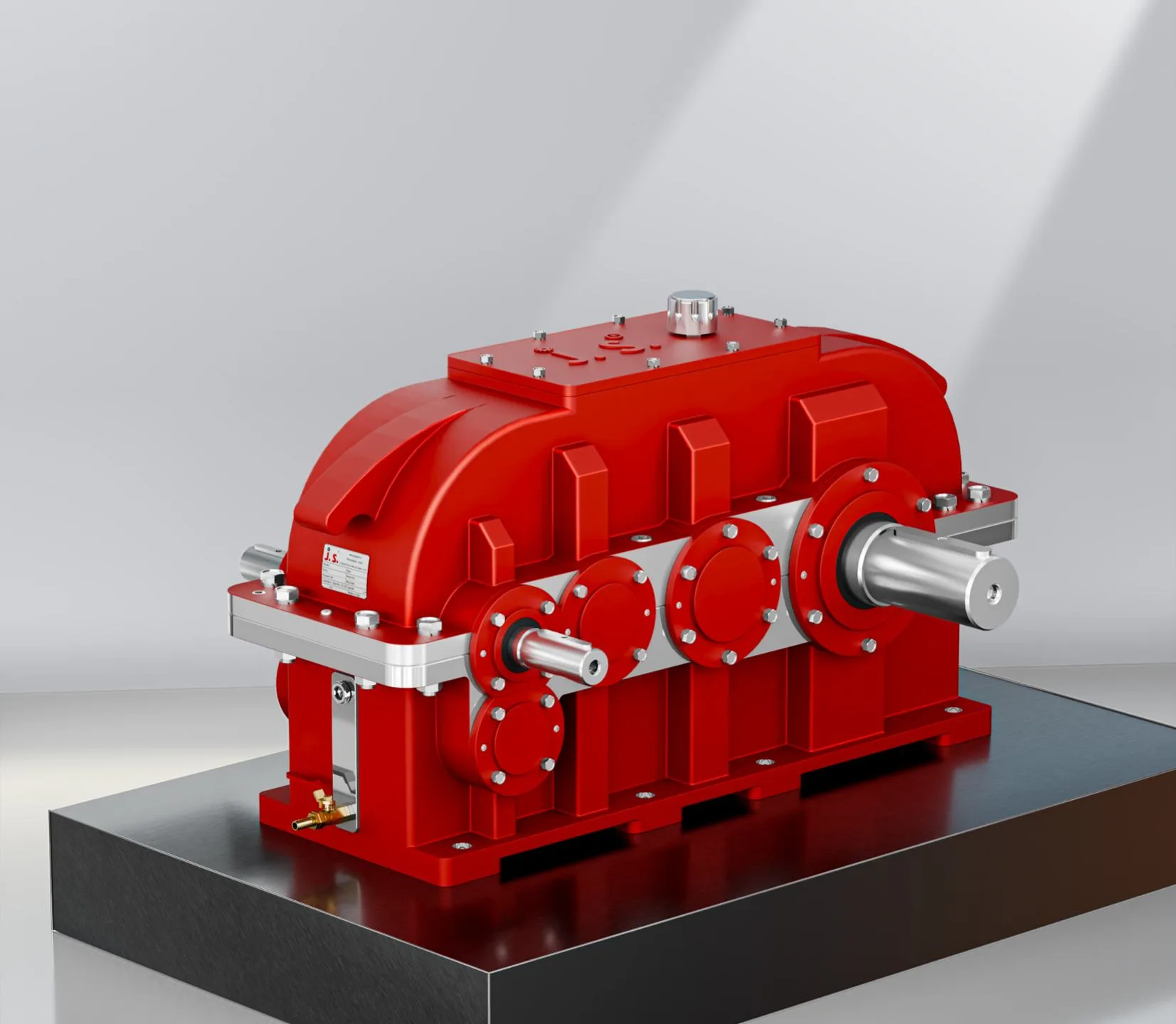

Graded cast iron housing
Solid output shaft
The range
Three series. One crane duty standard.
Choose by reduction stages. Every size is built to the same specification: alloy steel gears, roller bearings throughout and double imported oil seals.
Three stage
HC Series
25 – 150
Ratio i
2,115 kW
Max. rating · 1500 rpm
CI BodyFabricated
The workhorse for EOT crane hoists. Horizontal foot mounted to HC-1000, vertical to HC-500, heavy duty fabricated to HC-1600 F.
Four stage · primary reduction
HD Series
140 – 560
Ratio i
464.6 kW
Max. rating · 1500 rpm
CI BodyFabricated
An HC gearbox with a primary reduction stage for very slow hoisting speeds and high ratios.
HC series sizes →HD series sizes →LT series sizes →Cast iron or fabricated housingHeavy duty, fabricated steel only
Quick selector
Size your gearbox in 20 seconds.
Enter your motor and the ratio you need. The selector checks the 2027 nominal rating charts and returns the smallest model that carries your power at the chosen service factor.
Recommended model
—
—
—
Rating at your speed
—
Actual service factor
—
Output speed
—
Input torque
—
Rated output torque
—
Max. output torque
Input torque = kW × 9550 ÷ rpm · Rated = input × i × 0.98 · Max = rated × SFRatings from the J.S. Gear 2027 catalogue, interpolated for motor speed. This is a first selection only. Confirm the final model and certified GA drawing with our engineers.
Engineering · Inside the gearbox

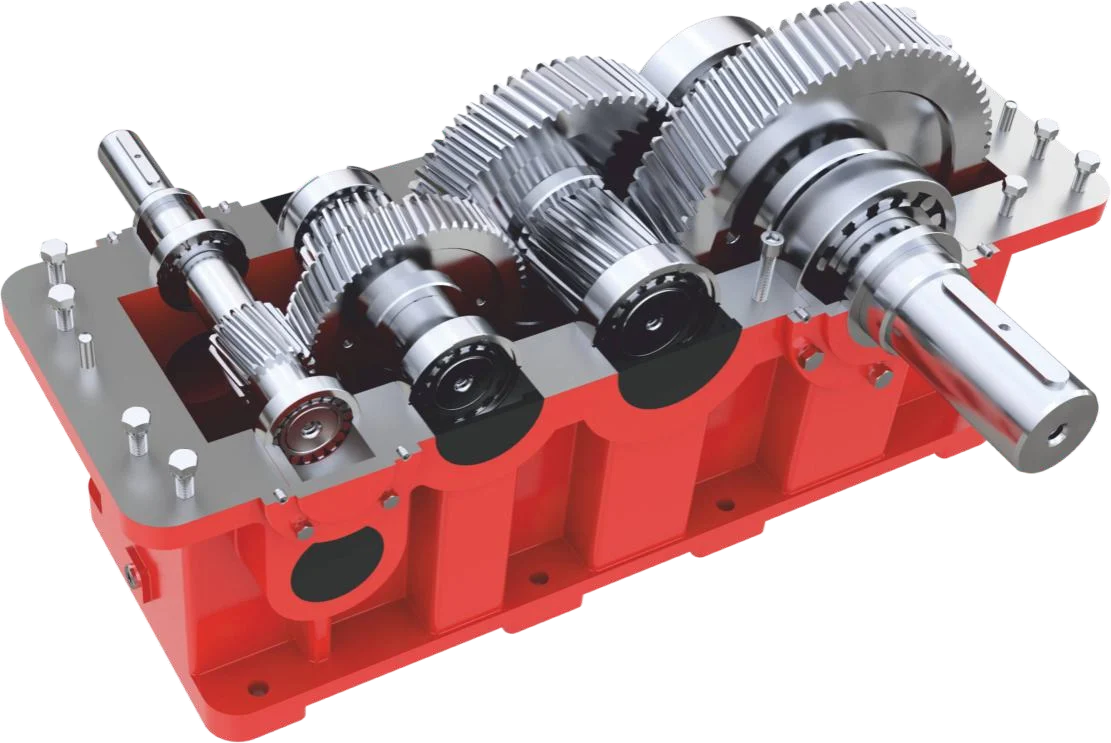

What goes into every unit
The same construction from LT-250 to HC-1600 F. No lighter-duty variants and no shortcuts on the smaller sizes.
1
2
3
4
1
Gears
High-grade alloy steel, case hardened to HRC 58–60 and precision profile ground to DIN 6 / DIN 7 accuracy.
2
Bearings
Roller bearings throughout.
3
Oil seals
Double imported oil seals on both input and output shafts.
4
Gear case
Super-rigid graded cast iron, machined on high-precision VMC and HMC centres. Fabricated steel housing available on request.
Quality · Assembly & testing
Test-run before it leaves.
Every gearbox is assembled by skilled technicians after stringent quality checks, then trial-run with bearing temperature and noise recorded. ISO 9001:2015 certified.
HRC 58–60
Gear hardness
Case hardened alloy steel
DIN 6 / 7
Gear accuracy
CNC profile grinding
< 85 dB
Noise level
Held below the standard limit
100%
Bearing temperature tested
During every trial run
Drum mounting
Drum on the output shaft? Check the overhung load.
Radial load Fr acts at the centre of the shaft extension. If your drum load exceeds the value below, mount the drum on its own shaft and bearings with a flexible coupling, or use a J.S. Gear standard gear ring for a more rigid arrangement.
| HC-350 | 425 | 500 | 550 | 650 | 725 | 800 | 900 | 1000 | 1100 | 1235 | 1395 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 24 | 25 | 26 | 30 | 42 | 70 | 75 | 100 | 130 | 168 | 210 |
Permissible overhung load Fr in kN at L/2 of the output shaft extension. Standard gear rings available from HC-350 to HC-1600.
Applications
Where our gearboxes work
Supplied to crane builders and plant maintenance teams across India and for export.
EOT crane main hoist
Drum drive through the output shaft or a standard gear ring, at hoisting ratios from 25:1 upward.
HC · HD
Auxiliary hoist
High ratios for slow, controlled lifting with the four-stage HD series.
HD
Long & cross travel
Two- and three-stage drives for bridge and trolley travel.
LT · HC
Winches & gantry cranes
Rope winches, goliath and gantry cranes, and heavy material handling.
LT · HC · HD
Infrastructure & capacity
Made in Ahmedabad. Machined in-house.
Machining, gear cutting, grinding, assembly and testing on one campus at Bakrol-Bujrang.
1990
Established
65
Skilled professionals
38
Machines & equipment
5,000 sq yd
Factory area
75%
of the plant runs on its own solar installation.
| Process | Machine | Capacity | Qty |
|---|---|---|---|
| Gear hobbing | Hobbing | Ø 800 × 14 module | 01 |
| Hobbing | Ø 630 × 10 · Ø 500 × 8 · Ø 280 × 5 module | 05 | |
| Gear grinding | CNC profile gear grinding | Ø 400 · Ø 500 | 02 |
| Machining | VMC | 1800 × 700 · 1050 × 450 | 02 |
| HMC | 630 × 630 · 500 × 500 · 300 × 300 | 03 | |
| Turning | CNC turning | up to Ø 450 × 1050 | 04 |
| Assembly | EOT cranes | 5 ton | 08 |
| Hydraulic press | — | 04 |
