HD-1600+315 F Crane Duty Gearbox
Four stage helical gearbox with three helical stages plus a primary reduction, case-hardened and profile-ground gears, roller bearings throughout and a solid output shaft. Heavy duty fabricated steel housing.
Dimensions (mm)
| Code | Dimension | Fabricated |
|---|---|---|
| Shafts | ||
| ØD1 | Input shaft Ø | 125 |
| L1 | Input shaft length | 200 |
| ØD2 | Output shaft Ø | 330 |
| L2 | Output shaft length | 425 |
| N | 300 | |
| M | 595 | |
| Overall | ||
| C | Centre distance, input to output | 1600 |
| C1 | Primary shaft offset | 315 |
| A | Overall length | 2990 |
| H | Overall height | 1540 |
| h | Shaft centre height | 765 |
| h1 | Primary shaft height | 450 |
| S | 2640 | |
| W | 1110 | |
| B | Base width | 1110 |
| Foot & mounting | ||
| Z | 555 | |
| T | 140 | |
| P | 970 | |
| Q | 555 | |
| R | 835 | |
| U | 140 | |
| F | 970 | |
| ØK | Foot bolt hole Ø | 52 |
| Keys | ||
| X1 | Input key width | 32 |
| Y1 | Input shaft to key top | 132.5 |
| X | Output key width | 70 |
| Y | Output shaft to key top | 344.5 |
| Weight & oil | ||
| Weight | Average weight | 11,000 kg |
| Oil | Oil quantity | 500 L |

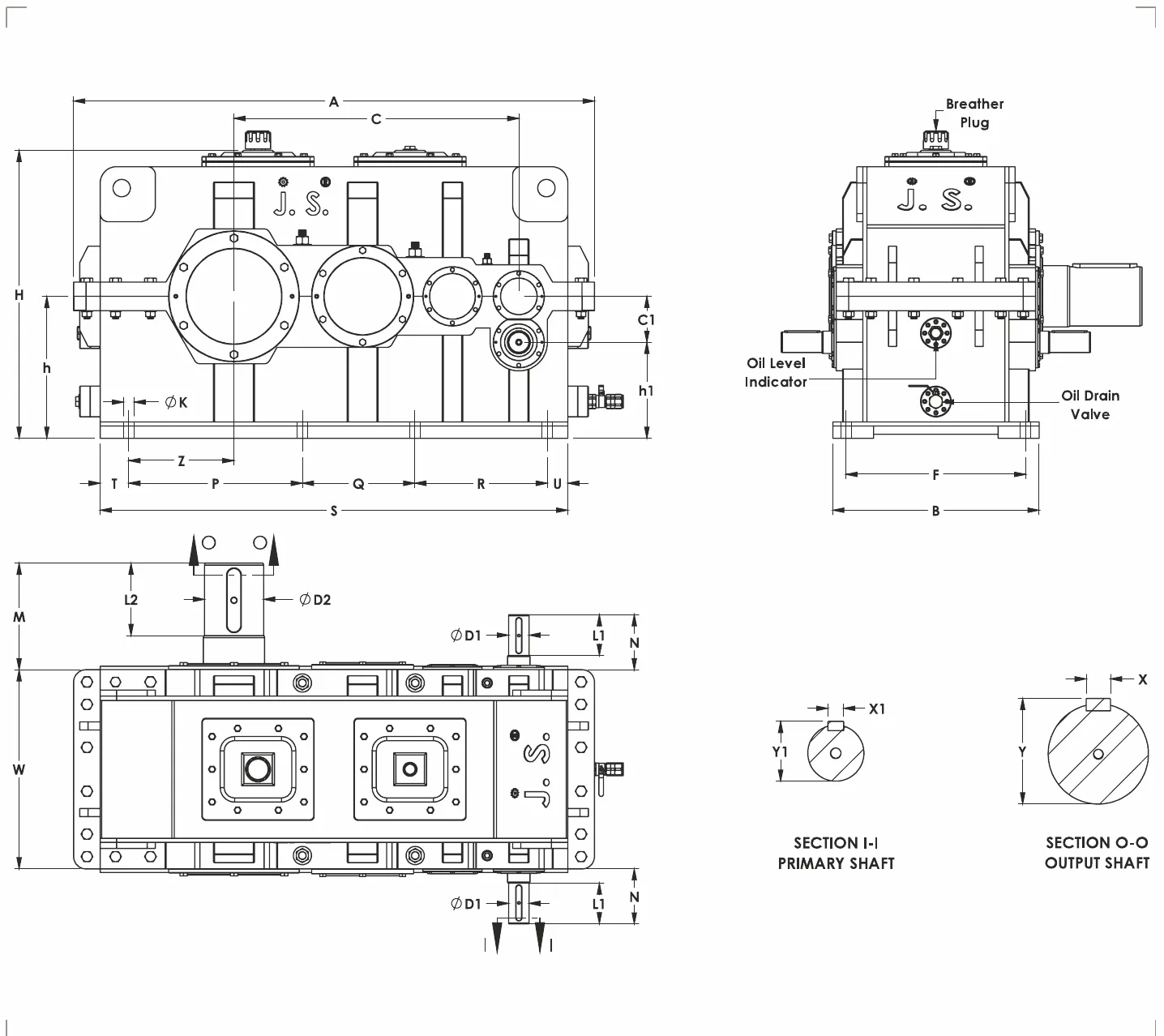

Letter codes match the GA drawing. Weight and oil quantity are indicative. Dimensions are subject to change with product development.
Power ratings
| Ratio i | n₂ rpm | kW @1500 | kW @1000 | kW @750 |
|---|---|---|---|---|
| 140:1 | 10.7 | 464.6 | 308.2 | 246.6 |
| 160:1 | 9.4 | 394.9 | 262 | 209.6 |
| 180:1 | 8.3 | 335.6 | 222.7 | 178.1 |
| 200:1 | 7.5 | 285.3 | 189.3 | 151.4 |
| 224:1 | 6.7 | 242.5 | 160.9 | 128.7 |
| 250:1 | 6 | 206.1 | 136.7 | 109.4 |
| 280:1 | 5.4 | 175.2 | 116.2 | 93 |
| 315:1 | 4.8 | 148.9 | 98.8 | 79 |
| 355:1 | 4.2 | 126.6 | 83.9 | 67.1 |
| 400:1 | 3.8 | 107.6 | 71.3 | 57.1 |
| 450:1 | 3.3 | 91.4 | 60.6 | 48.5 |
| 500:1 | 3 | 77.7 | 51.5 | 41.2 |
| 560:1 | 2.7 | 66 | 43.8 | 35 |
Nominal input power in kW at the stated input speed. n₂ is the nominal output speed at 1500 rpm input. Consult J.S. Gear for application-specific selection.
Output shaft loading
Mount driven components with a flexible coupling. Contact us with your arrangement for an overhung load check.
Standard gear ring · HC-1600
| ØD | ØP | ØS | C | SL1 | T | ØDR | ØB | BL |
|---|---|---|---|---|---|---|---|---|
| 1250 | 1025 | 800 | 830 | 10 | 90 | 52 | 400 | 110 |
| 1450 | 1200 | 900 | 830 | 10 | 90 | 52 | 400 | 110 |
| 1650 | 1375 | 1000 | 830 | 10 | 90 | 52 | 400 | 110 |
All dimensions in mm. Other gear ring sizes on request. Request a certified drawing before manufacture.
Need a price or a certified GA drawing?
Send the duty for HD-1600+315 F and we reply with price, delivery and a certified GA drawing.
