HC-650 Crane Duty Gearbox
Three stage helical gearbox with three reduction stages, case-hardened and profile-ground gears, roller bearings throughout and a solid output shaft.
Dimensions (mm)
| Code | Dimension | CI body | Fabricated |
|---|---|---|---|
| Shafts | |||
| ØD1 | Input shaft Ø | 50 | 50 |
| L1 | Input shaft length | 120 | 120 |
| ØD2 | Output shaft Ø | 105 | 105 |
| L2 | Output shaft length | 200 | 200 |
| N | 153 | 153 | |
| M | 260 | 260 | |
| Overall | |||
| C | Centre distance, input to output | 650 | 650 |
| A | Overall length | 1190 | 1160 |
| H | Overall height | 630 | 630 |
| h | Shaft centre height | 315 | 315 |
| S | 1060 | 1060 | |
| W | 395 | 395 | |
| B | Base width | 400 | 400 |
| Foot & mounting | |||
| Z | 225 | 225 | |
| T | 57.5 | 57.5 | |
| P | 380 | 380 | |
| Q | 230 | 230 | |
| R | 335 | 335 | |
| U | – | 57.5 | |
| F | 340 | 340 | |
| ØK | Foot bolt hole Ø | 26 | 26 |
| Keys | |||
| X1 | Input key width | 14 | 14 |
| Y1 | Input shaft to key top | 54 | 54 |
| X | Output key width | 28 | 28 |
| Y | Output shaft to key top | 111.5 | 111.5 |
| Weight & oil | |||
| Weight | Average weight | 795 kg | 880 kg |
| Oil | Oil quantity | 70 L | 70 L |

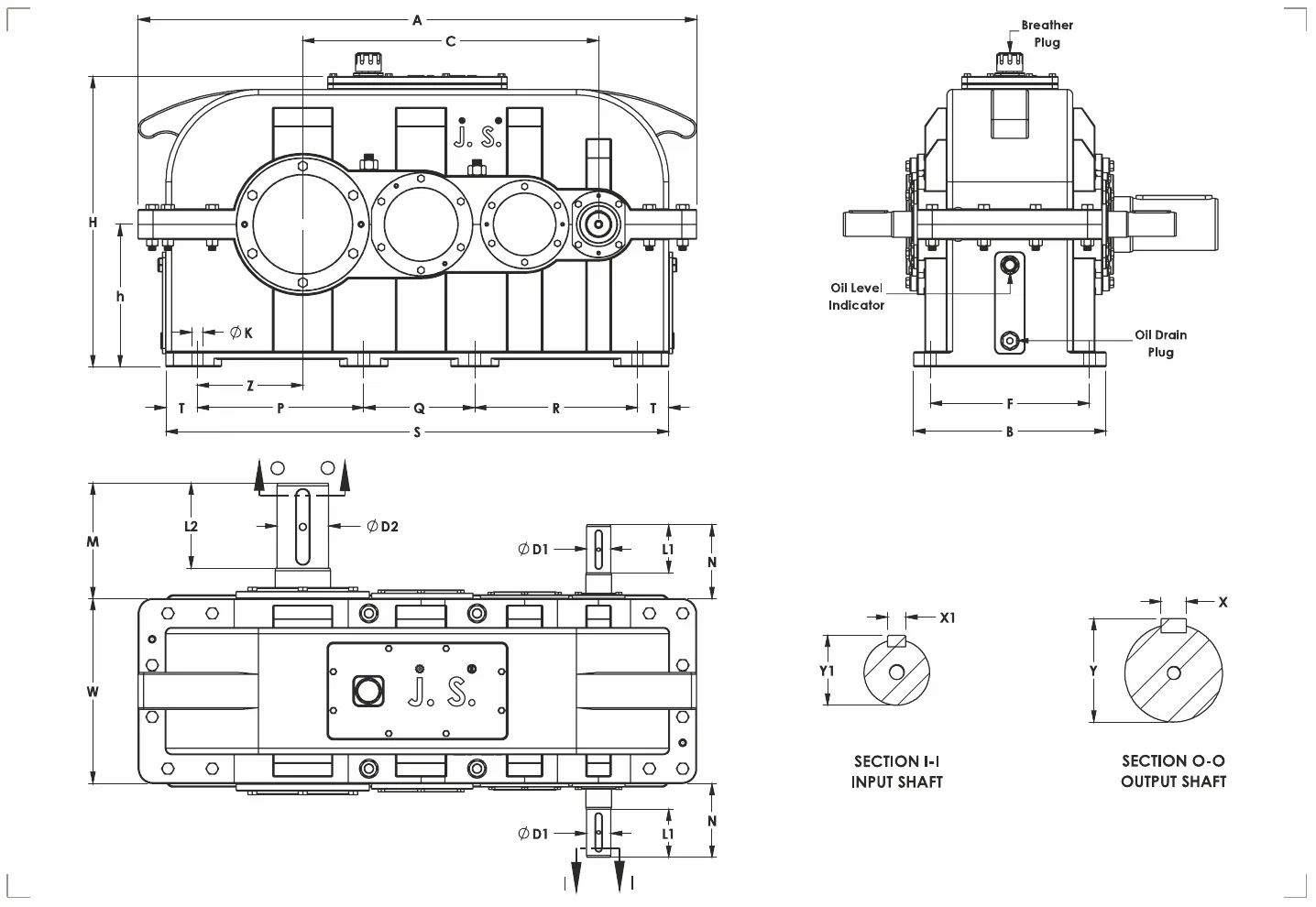

Letter codes match the GA drawing. Weight and oil quantity are indicative. Dimensions are subject to change with product development.
Power ratings
| Ratio i | Actual | n₂ rpm | kW @1500 | kW @1000 | kW @750 |
|---|---|---|---|---|---|
| 25:1 | 25 | 60 | 119.8 | 86.4 | 69.1 |
| 31.5:1 | 31.8 | 47.6 | 109 | 78.6 | 62.9 |
| 35.5:1 | 35.5 | 42.3 | 99.2 | 71.5 | 57.2 |
| 40:1 | 39.1 | 37.5 | 90.2 | 65.1 | 52 |
| 45:1 | 46.8 | 33.3 | 82.1 | 59.2 | 47.4 |
| 50:1 | 50 | 30 | 74.7 | 53.9 | 43.1 |
| 56:1 | 57.1 | 26.8 | 68 | 49 | 39.2 |
| 63:1 | 68.6 | 23.8 | 61.9 | 44.6 | 35.7 |
| 71:1 | 71.5 | 21.1 | 56.3 | 40.6 | 32.5 |
| 80:1 | 82.2 | 18.8 | 51.2 | 36.9 | 29.5 |
| 90:1 | 91.2 | 16.7 | 46.6 | 33.6 | 26.9 |
| 100:1 | 97.5 | 15 | 42.4 | 30.6 | 24.5 |
| 112:1 | 114.2 | 13.4 | 38.6 | 27.8 | 22.3 |
| 120:1 | 122.1 | 12.5 | 35.1 | 25.3 | 20.2 |
| 140:1 | 135.4 | 10.7 | 32 | 23 | 18.4 |
| 150:1 | 147.9 | 10 | 29.1 | 20.9 | 16.8 |
Nominal input power in kW at the stated input speed. n₂ is the nominal output speed at 1500 rpm input. Consult J.S. Gear for application-specific selection.
Output shaft loading
Permissible overhung load on the output shaft is 30 kN, acting at the middle of the shaft extension (L/2). Above this, support the drum on its own shaft and bearings with a flexible coupling, or use the standard gear ring below.
Standard gear ring · HC-650
| ØD | ØP | ØS | C | SL1 | T | ØDR | ØB | BL |
|---|---|---|---|---|---|---|---|---|
| 550 | 475 | 300 | 345 | 5 | 29 | 21 | 140 | 50 |
| 625 | 550 | 350 | 345 | 5 | 29 | 21 | 140 | 50 |
| 680 | 600 | 450 | 345 | 5 | 29 | 21 | 140 | 50 |
All dimensions in mm. Other gear ring sizes on request. Request a certified drawing before manufacture.
